Assigned Readings & Videos

Before completing this tutorial, please watch the tutorial Figma video, and complete the low-fidelity prototype reading:

1. Figma Wireframe Tutorial for Beginners. Aliena Cai
2. Low-Fidelity Prototypes. Interaction Design Foundation

In this activity, you will create a low-fidelity wireframe of the Instagram feed screen to practice layout, hierarchy, and information architecture.

1. Why Wireframes?

Wireframes are the blueprint of your design. They help you:

• Focus on layout and structure without getting distracted by colors and styling
• Plan information hierarchy (what users see first, second, third)
• Identify user flows and interactions
• Get feedback on functionality before investing time in visual design

Wireframing Rules:

✅ DO	❌ DON'T
Use rectangles and boxes to represent images and content areas Add text labels to identify what each element is Use grayscale only (no colors) Focus on layout and spacing Show hierarchy through size and position	Add colors or styling Use actual images Worry about fonts, custom assets, etc.

2. Setup: Getting Started with Figma

1. Go to figma.com and sign in (or create a free account)
2. Open the Tutorial 4 starter file: Instagram Wireframes Starter
3. Click the ”…” menu in the top right corner
4. Select “Duplicate” to create your own copy
5. Rename your file: Instagram Wireframes - [Your Name]

The starter file already has:

• A mobile frame (375px width) set up for you
• A desktop frame (1200px width) set up for you
• Both frames are ready for you to add your wireframe elements

2.1. Figma Basics (Quick Reference)

Shortcut	Action
R	Rectangle tool - Draw boxes for content areas
T	Text tool - Add labels and placeholder text
F	Frame tool - Create frames for different screens (like artboards)
Cmd/Ctrl +	Zoom in
Cmd/Ctrl -	Zoom out
Shift + 1	Zoom to fit (re-center canvas)
Spacebar + Drag	Pan (move around the canvas)

3. Wireframe the Feed Screen

Recreate the Instagram feed screen wireframes shown in the starter file for both mobile and desktop versions.

Wireframe Ground Rules

1. No colors (but you can use grayscale)
2. No images
3. Use only one font – but you can use variants (bold, italics, size, uppercase, etc.)

3.1. Mobile Version

1. Find the mobile frame:

   • Click on the mobile frame in the left sidebar to select it
   • You’ll see a reference image showing what the mobile feed should look like

2. Recreate the wireframe:

   • Using rectangles, circles, and text labels, recreate the layout shown in the reference image
   • Focus on matching the structure, spacing, and hierarchy
   • Use placeholders for text (e.g., “Username”, “Caption text…“)

3.2. Desktop Version

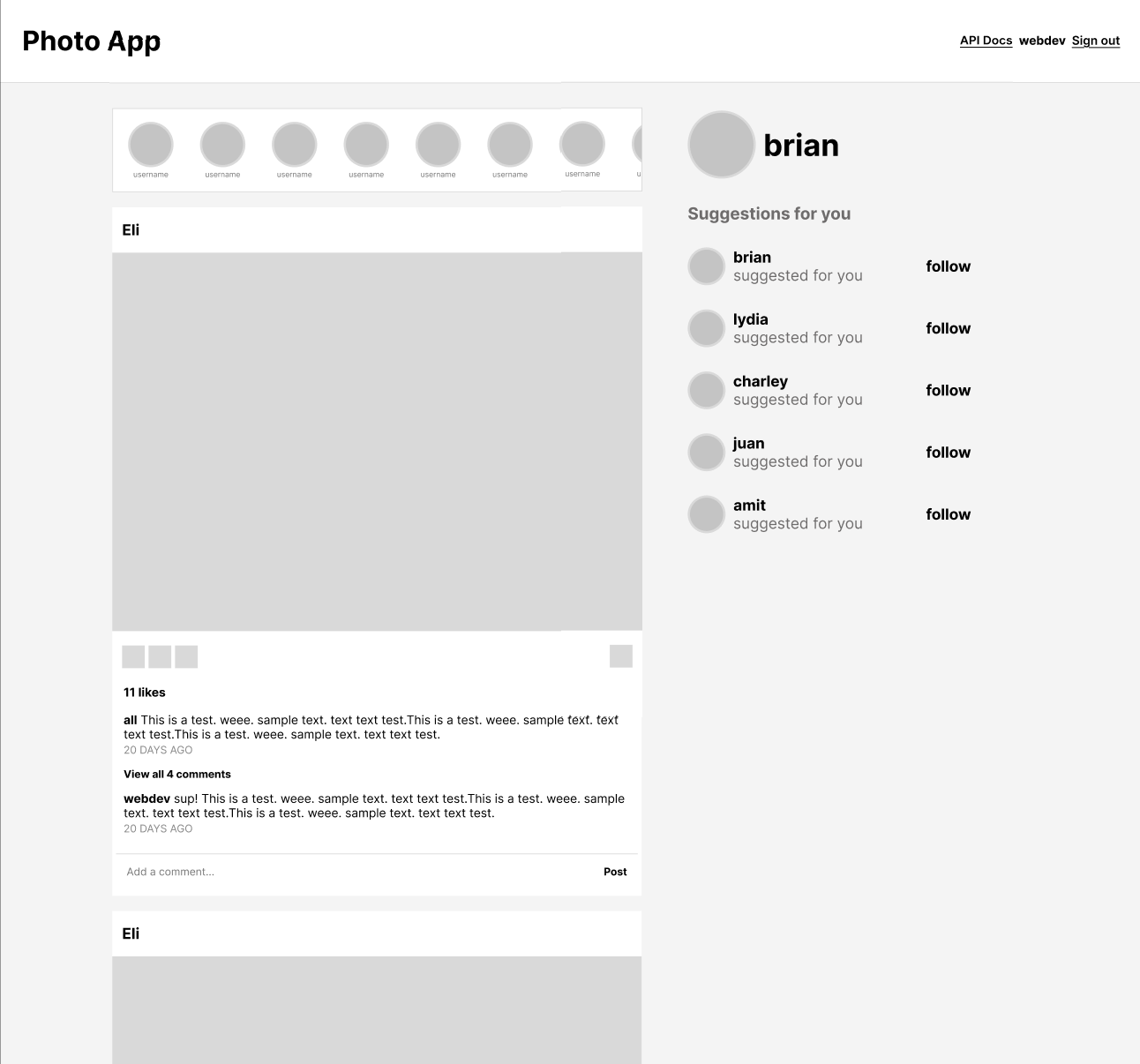

1. Find the desktop frame:

   • Click on the desktop frame in the left sidebar to select it
   • You’ll see a reference image showing what the desktop feed should look like

2. Recreate the wireframe:

   • Using rectangles, circles, and text labels, recreate the layout shown in the reference image
   • Pay attention to the two-column layout (main content on left, sidebar on right)
   • Use placeholders for text (e.g., “Username”, “Caption text…“)

4. Checklist

Next Steps

When you’re done with your low-fidelity mockup, move on to Tutorial 04b (high-fidelity mockup).
