Assignments > HW5: Build a REST API

Due on Fri, 05/02 @ 11:59PM. 40 Points.

Video Walkthroughs for Homework 5

I have created some video walkthroughs to help you get started on Homework 5, which have been posted to Google Drive. Note that a few of these videos were created last semester (before we were using poetry). So, just remember that to run any of your python files, you’ll need to add “poetry run” before any of your command line commands. For instance:

• Instead of flask run --debug, you’ll type: poetry run flask run --debug
• Instead of python run_tests.py -v you’ll type: poetry run python run_tests.py -v

Introduction

For homework 5, you are going to create a REST API using Flask and PostgreSQL. To do this, you will:

1. Create and populate a local database
2. Configure your python code to interact with the database using SQL Alchemy
3. Use Flask RESTful to implement a few API endpoints
4. Run the tests to see that your API requirements have been met

Set Up

Before you get into the concepts and code, let’s first download and configure the Homework 5 files. Please complete the following steps:

1. Download the HW5 files and save them inside of your csci344 folder

Download hw05.zip and unzip it.

hw05.zip

You should see a directory structure that looks like this:

hw05
├── README.md
├── app.py
├── models
├── populate.py
├── pyproject.toml
├── static
├── templates
├── tests
├── users.csv
├── utilities
└── views

2. Install the dependencies using poetry

Navigate to the hw05 folder on your command line and install the dependencies as follows:

poetry install

3. Create a new database and populate it

1. Create a new database

Create a new database called photo-app. In my opinion, the easiest way to do this is via the command line:

• Type: psql -U postgres
• From within the psql shell, type: CREATE DATABASE "photo-app";
• Type: \q to exit the shell

If psql is not recognized on your command line, see the Tutorial 10 instructions for configuring your path.

2. Add DB_URL to your .env file

Create an environment variable called DB_URL in your .env file. This variable will store the path to your database in a format that SQLAlchemy can understand. Your database connection information is represented as follows…

postgresql+psycopg://{user}:{password}@{host}/{database}

Each parameter of the connection string is described in the table below:

Here is Sarah’s .env file (your postgres password will be different):

FLASK_APP=app.py
# postgresql+psycopg://{user}:{password}@{host}/{database}
DB_URL=postgresql+psycopg://postgres:12345@localhost/photo-app

3. Populate your database

When you’re done, populate your database by running the following command on the command line (from the photo-app directory):

# run from within the photo-app directory on the command line (with your venv activated):
poetry run python populate.py

Each time the populate.py script is run, it will delete all of the tables and recreate them with the people in this class (reads from users.csv). Feel free to take a look at how this script works if you’re curious! As you’re testing, feel free to run the populate.py script to get a fresh copy of your database.

4. Verify Your Installation

To verify your installation…

1. Run Flask

Run flask with your virtual environment activated as follows:

poetry run flask run --debug

You should see output that looks similar to this:

 * Serving Flask app 'app.py' (lazy loading)
 * Environment: development
 * Debug mode: on
 * Running on http://127.0.0.1:5000 (Press CTRL+C to quit)
 * Restarting with stat
 * Debugger is active!
 * Debugger PIN: 802-745-136

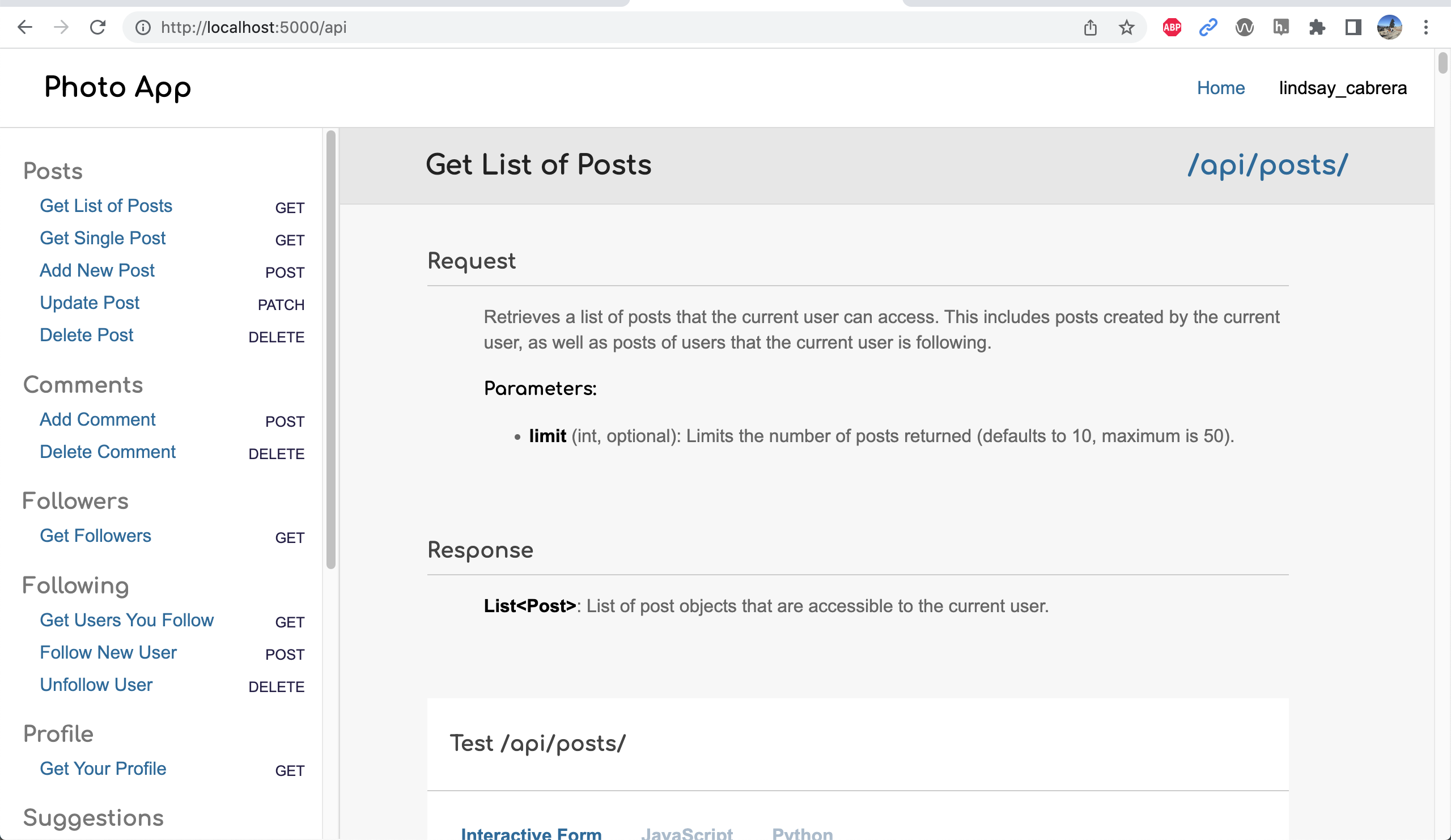

2. Verify that the API Tester Loads

Next, navigate to http://127.0.0.1:5000/api and you should see a screen that looks like this:

This UI can help you test your API (as can the automated tests and Postman).

3. Run the automated test suite

From a new terminal / shell window, navigate into the hw05/tests and run the test suite while Flask is running. Note that you will need to have 2 terminals open: one that’s running flask and one that’s for the test suite.

Run the tests:

cd tests
poetry run python run_tests.py

The test suite should run 44 tests. You should see a bunch of error messages output to the screen with a summary at the bottom telling you that there were a bunch of failures and errors

run python run_tests.py
F.F.FFFFFFFFF...FFFF.F.FFF.FFFF.FFFFFF..FFFF

A bunch of error messages....

Ran 44 tests in 1.121s

FAILED (failures=33)

Your goal is to get all of the tests to pass.

Background Readings and Concepts

Before you start coding, let’s spend a few minutes reviewing some of the libraries and principles that we’ll be using for this assignment. Specifically:

1. SQL Alchemy
2. Flask RESTful

1. SQL Alchemy

Please see the SQL Alchemy activity (to be done in class) to get guidance re: how to interact with the database. There are many examples in the activity that are directly related to completing your homework.

2. Flask RESTful

Now that you’ve had some practice interacting with your database using SQL Alchemy, you’re ready to create some REST API endpoints. As a reminder, REST is an architectural style that allows other clients to interact with some subset of your database over the web (using HTTP). To help us build these endpoints and keep them organized, we’re going to use a convenience library called Flask RESTful. You can learn more about this library by reading the documentation.

You will be using the Resource class from Flask RESTful to build our various endpoints. I have already created a bunch of starter endpoints for you in the views directory that you will be editing for this assignment. Note that each file in the views directory has a List and Detail resource defined:

• The List resource is for returning lists of resources and creating new resources.
• The Detail resource is for reading, updating, and deleting individual resources.

Examine the views/posts.py file

Open the views/posts.py file so that you can take a look at the code for creating, reading, updating, and deleting Post models.

• The PostListEndpoint class in views/posts.py is in charge of getting a list of posts (GET) and creating a new posts (POST). It is accessible with this endpoint: http://localhost:5000/api/posts/.
• The PostDetailEndpoint class in views/posts.py is in charge of getting individual posts (GET), updating a post (PATCH), and deleting a post (DELETE). It is accessible with this endpoint: http://localhost:5000/api/posts/<id> (but replace <id> with a valid Post id).

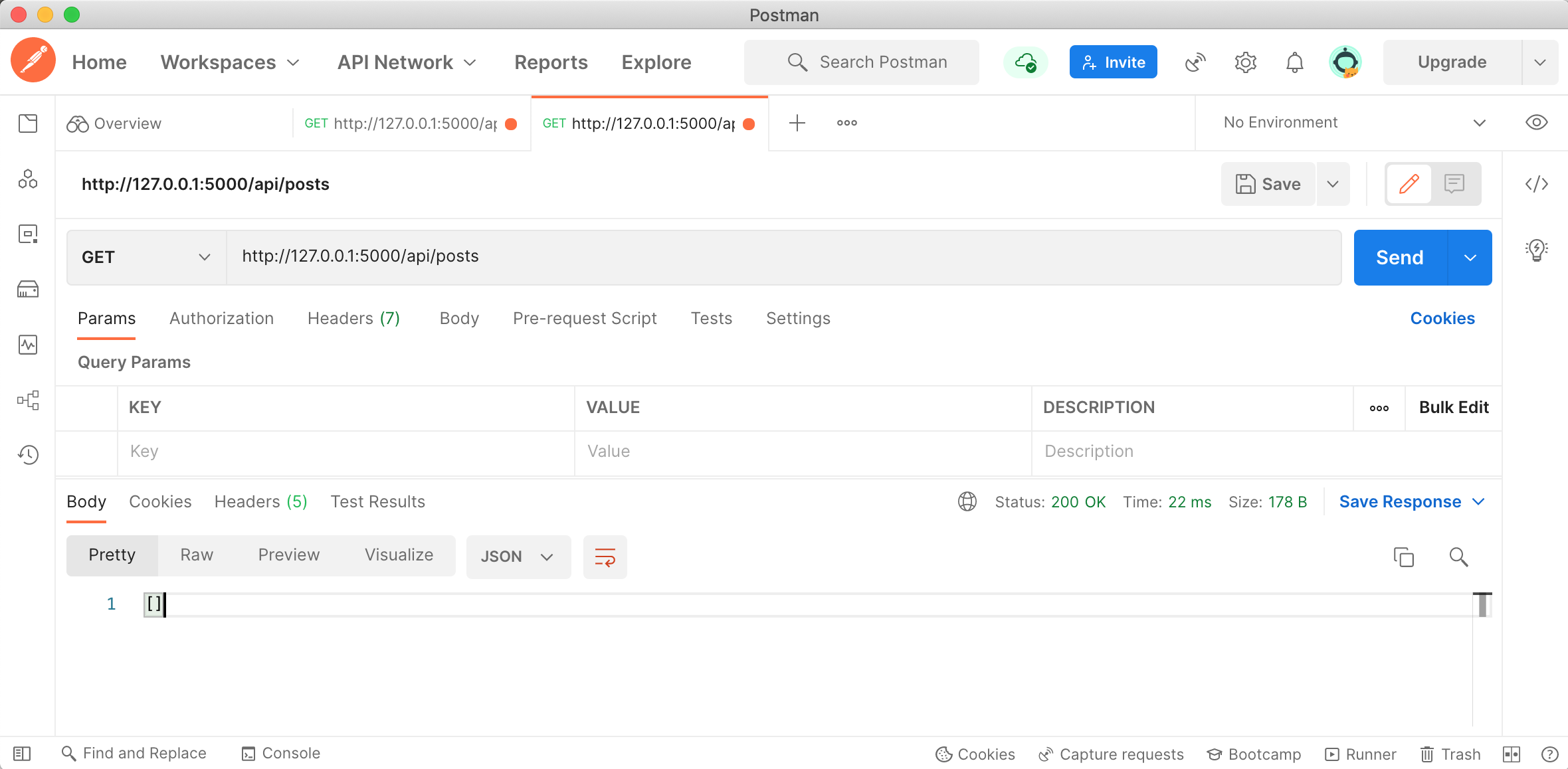

Verify the Postman can interact with your various endpoints

When you’re done inspecting this file, please open Postman to test one of the Post endpoints. You will have to download “Postman Agent” in order for Postman to be able to access endpoints on your local computer.

1. Paste http://127.0.0.1:5000/api/posts/ into the address bar
2. Ensure that the GET method is selected
3. Click the “Send” button.

If it worked, you will see an empty list [] in the output panel. This is because the /api/posts/ endpoint for the GET method has not yet been implemented:

Requirements

1. Resources

The API should make 8 resources available to Photo App. Note that the to_dict() methods in each Model definition should already generate the data structures shown below. This section just describes what these resources look like:

1. Post
2. User
3. Bookmark
4. LikePost
5. Story
6. Optional Comment
7. Optional Following
8. Optional Follower

1. Post

Post resources should contain data about the post, the user, and any associated comments (order within the json object doesn’t matter). It should also contain some convenience data fields such as whether the current user has liked or bookmarked the post (e.g. current_user_like_id and current_user_bookmark_id). The to_dict() method in each of the models already does this for you, so you will invoke the model’s to_dict() method when returning resources.

{
   "id": 99,
   "image_url": "https://picsum.photos/600/430?id=605",
   "user": {
      "id": 11,
      "first_name": "Jason",
      "last_name": "Lopez",
      "username": "jason_lopez",
      "email": "jason_lopez@yahoo.com",
      "image_url": "https://picsum.photos/300/200?id=368",
      "thumb_url": "https://picsum.photos/30/30?id=582"
   },
   "caption": "Sometimes degree food never sit probably remember main education race machine.",
   "alt_text": "Descriptive text",
   "display_time": "7 days ago",
   "current_user_like_id": 56,
   "current_user_bookmark_id": 20,
   "likes": [
      {
         "id": 263,
         "user_id": 2,
         "post_id": 99
      },
      {
         "id": 264,
         "user_id": 20,
         "post_id": 99
      },
      ...
   ],
   "comments": [
      {
         "id": 256,
         "text": "Night ability such already study make bed there total tonight military democratic expect our serious second perform interesting modern send table window kid dinner message although degree law town standard head special image.",
         "post_id": 99,
         "user": {
            "id": 15,
            "first_name": "Lisa",
            "last_name": "Parrish",
            "username": "lisa_parrish",
            "email": "lisa_parrish@yahoo.com",
            "image_url": "https://picsum.photos/300/200?id=982",
            "thumb_url": "https://picsum.photos/30/30?id=999"
         }
      },
      {
         "id": 257,
         "text": "Start difference news gas administration hot deal support anyone explain task water anything more street better herself yourself its guess sport fall collection war natural foreign stage training example act eat television over happy dark bring character foreign low black establish skill rock science food close people help thought garden task test option help agency.",
         "post_id": 99,
         "user": {
            "id": 12,
            "first_name": "Samantha",
            "last_name": "Acosta",
            "username": "samantha_acosta",
            "email": "samantha_acosta@yahoo.com",
            "image_url": "https://picsum.photos/300/200?id=220",
            "thumb_url": "https://picsum.photos/30/30?id=79"
         }
      },
      ...
   ]
}

2. User

The User resource should be structured like this:

{
    "id": 1,
    "first_name": "Roger",
    "last_name": "Graves",
    "username": "roger_graves",
    "email": "roger_graves@gmail.com",
    "image_url": "https://picsum.photos/300/200?id=994",
    "thumb_url": "https://picsum.photos/30/30?id=953"
}

3. Bookmark

The Bookmark resource should just be an id and a post object without the comments:

{
    "id:": 20,
    "post": {
        "id": 1,
        "image_url": "https://picsum.photos/600/430?id=625",
        "caption": "Many down a reveal woman key center technology citizen truth glass data food arm continue head cup career fear life write talk strong build hospital painting city rest wrong thought give light marriage something trial produce whom total cut third series same personal stage ahead move face personal gas tend religious wish.",
        "alt_text": "Some alt text",
        "user": {
            "id": 1,
            "first_name": "Roger",
            "last_name": "Graves",
            "username": "roger_graves",
            "email": "roger_graves@gmail.com",
            "image_url": "https://picsum.photos/300/200?id=994",
            "thumb_url": "https://picsum.photos/30/30?id=953"
        }
    }
}

4. LikePost

The LikePost resource should be structured like this:

{
    "id": 662,
    "user_id": 12,
    "post_id": 3
}

5. Story

The Story resource should be structured like this (mostly just a placeholder for now):

{
    "id": 7,
    "text": "Produce Democrat what city professor young though since southern history deep mother.",
    "user": {
        "id": 11,
        "first_name": "Lindsey",
        "last_name": "Shepard",
        "username": "lindsey_shepard",
        "email": "lindsey_shepard@gmail.com",
        "image_url": "https://picsum.photos/300/200?id=159",
        "thumb_url": "https://picsum.photos/30/30?id=689"
    }
}

6. Comment Optional

The Comment resource should be structured like this:

{
    "id": 2,
    "text": "Than join finish special force according heart beautiful actually him candidate down site when or threat much commercial own suddenly food investment finally class into base friend still understand.",
    "post_id": 1,
    "user": {
        "id": 24,
        "first_name": "Joseph",
        "last_name": "Mclaughlin",
        "username": "joseph_mclaughlin",
        "email": "joseph_mclaughlin@yahoo.com",
        "image_url": "https://picsum.photos/300/200?id=474",
        "thumb_url": "https://picsum.photos/30/30?id=987"
    }
}

7. Following Optional

The Following resource should just be an id and a user object structured like this:

{
    "id": 302,
    "following": {
        "id": 11,
        "first_name": "Ashley",
        "last_name": "Thornton",
        "username": "ashley_thornton",
        "email": "ashley_thornton@hotmail.com",
        "image_url": "https://picsum.photos/300/200?id=939",
        "thumb_url": "https://picsum.photos/30/30?id=465"
    }
}

8. Follower Optional

The Follower resource (which is created using the “Following” model)resource should just be an id and a user object structured like this:

{
    "id": 302,
    "follower": {
        "id": 11,
        "first_name": "Ashley",
        "last_name": "Thornton",
        "username": "ashley_thornton",
        "email": "ashley_thornton@hotmail.com",
        "image_url": "https://picsum.photos/300/200?id=939",
        "thumb_url": "https://picsum.photos/30/30?id=465"
    }
}

2. Security

Access to data is contextual, based on the user who is logged into the system. For now, the person logged into the system is represented by the current_user variable, which is set in app.py.

Who is currently logged in?

The current user is hardcoded as user_id=12

Read Permissions

Our photo sharing app is more private than Instagram, and the rules are simple:

• The user can only see their own posts and stories, and the posts and stories (and associated comments) of people they’re following.
• The user can only see their own bookmarks, followers, and who is following them (this is private information).

Write Permissions

• The user can only bookmark, like, and comment on their own posts and the posts of people they’re following.
• The user can only edit and delete comments, posts, and stories that they created themselves.

3. HTTP Status Codes

All HTTP responses have an attached status code, which represents additional information about the request. A list of all valid HTTP status codes can be found here. For this assignment:

• All routes should return a 200 status code for a valid request unless POST is used, in which case a 201 status should be used.
• If a requests asks for information about data that does not exist (e.g. retrieving a Post with an id that isn’t present in the data), a 404 code should be used.
• If the user sent a request that is invalid, a 400 code should be used.

Your Tasks

Implement the following GET routes (20 Points)

The links included below point to a deployment of the hw05 solutions.

Implement POST, PATCH, and DELETE routes (26 points)

The next set of routes involves storing and manipulating data in your PostgreSQL. A few notes:

• PATCH and DELETE methods can fail to find an object if it does not exist within data or if the current user does not have access to it. In these cases, you should mark the status of the response as 404, indicating that the requested resource could not be found.
• Receiving two POST requests with identical bodies should create two different objects with distinct ids.
• PostgreSQL will create ids for you automatically.

What to Turn In

Please review the requirements above and ensure you have met them. Specifically:

• 2 points for getting everything set up and running
• 20 points for GET requests
• 18 points for POST / PATCH / DELETE requests
• Extra credit 8 points (Comments, Follow / Unfollow)

When you’re done, please submit the following to the Moodle:

• A link to your GitHub Repo
• If you worked with a partner, please list your partner
